WesAudio Phoebe

869,00 €*

Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.

Hersteller: WesAudio

Produktinformationen "WesAudio Phoebe"

100% analog microphone/line preamp with +28dBu of headroom.
Class A fully analog – inspired by famous British design based on dual amp topology.
Microphone gain up to 75dB.

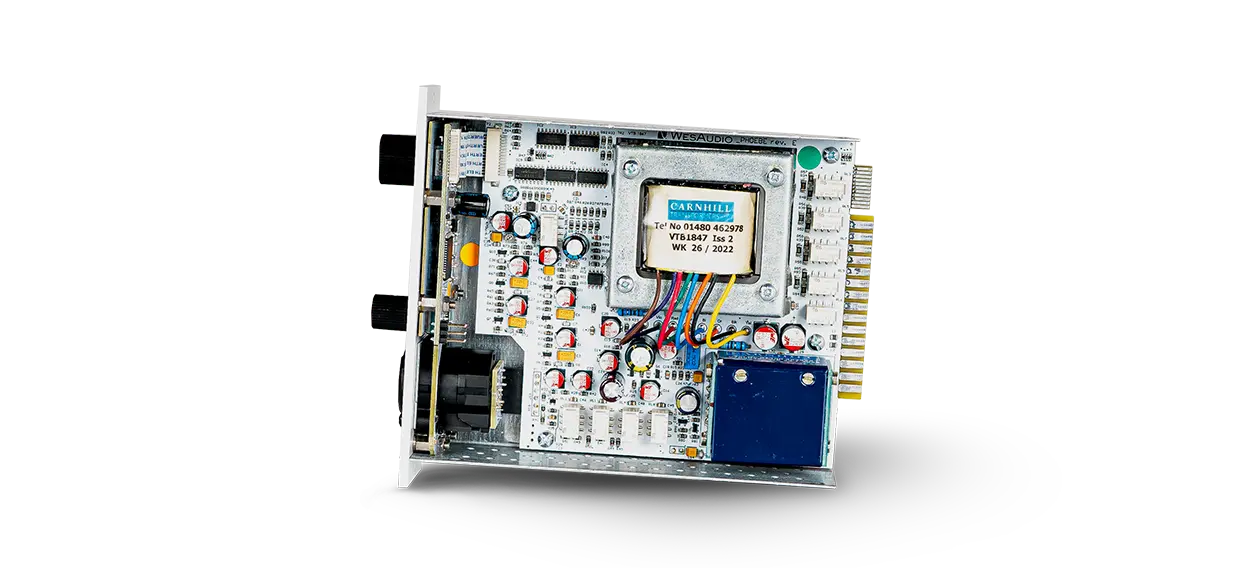

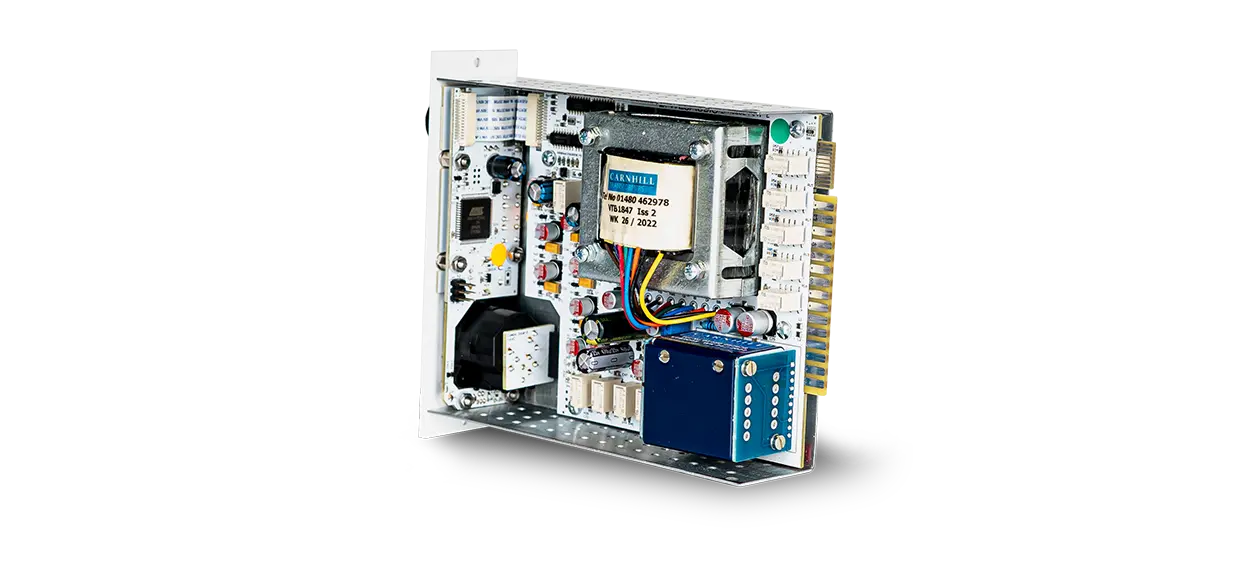

Carnhill Transformers (input and output).

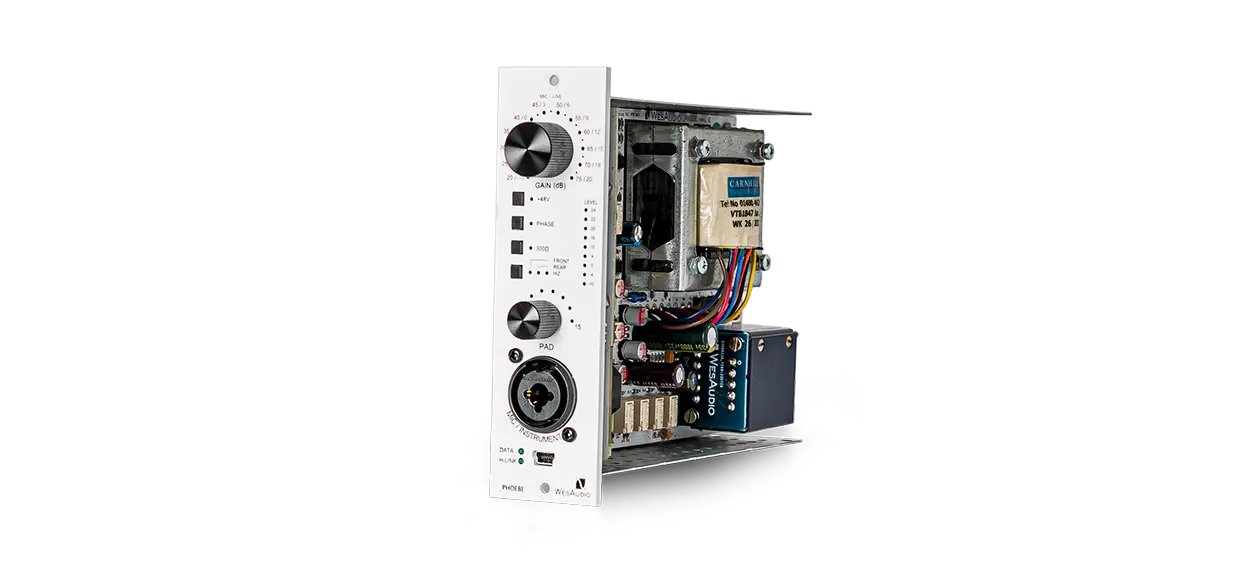

Output signal metering on the front panel with clip detection.
Phantom power and phase invert control.
Switchable impedance input (1200/300Ohm).
All controls/analog settings are fully manageable via the WesAudio GCon DAW plug-in.
15dB OUTPUT PAD – passive output attenuation circuit with 1 dB step. (after the output transformer).
Front panel XLR/TS socket which supports – HiZ instrument input (TS), line input (XLR), microphone input (XLR).
Recallab

Sicherheits- und Warnhinweise:	Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt.

Wes Audio Sp. z o.o.

Zegadlowicza 54 PL-71-370 Szczecin Poland

info@wesaudio.com

Alle Produkte im Shop

_Phoebe specification

Frequency response	+/- 0.5dB 20Hz-20kHz; -3dB at 50kHz
Distortion	0.005% at 1kHz at +20dBu output
Line input impedance	5.5k ohm bridging
Microphone input impedance	300/1200 ohm
Noise	unity gain (better than -100dbU) Max gain +75dB (better than -70dbU)
EIN	better than -120dB
Max power consumption	170mA(+16V); 100mA(-16V)
Dimensions	38x133x145mm
