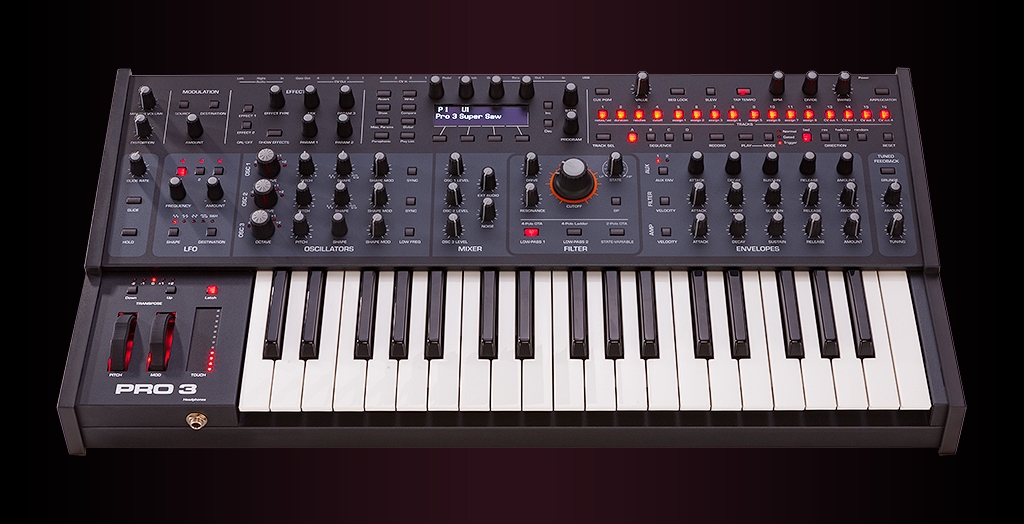

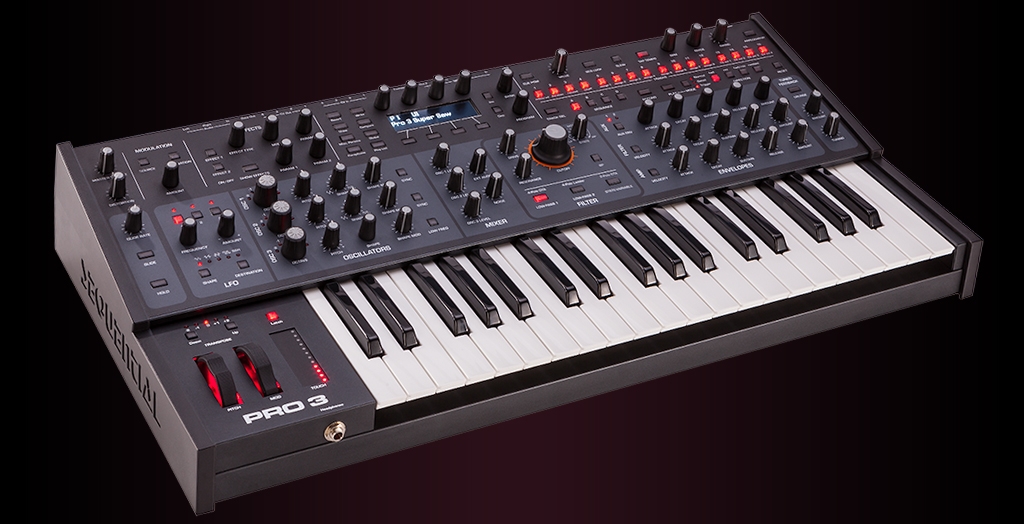

Sequential Pro 3

3 OSCILLATORS

• Two analog, voltage-controlled oscillators
• One DSP-based digital oscillator
• Analog oscillators produce three classic wave shapes: (triangle, saw, pulse) with variable shape modulation/pulse width on each
• Digital oscillator produce 32 digital wavetables of 16 waves each with wave morphing, plus classic wave shapes (sine, triangle, saw, variable-width pulse) and super saw
• Digital oscillator 3 can function as an LFO for complex wavetable-based modulation
• White noise generator
• Hard sync, per-oscillator Glide, Oscillator Slop

3-VOICE PARAPHONIC PLAYABILITY

• 3-voice paraphonic mode with individually-gated envelopes per oscillator

3 FILTERS

• Three classic filter types
• Filter 1 is a 4-pole, 24 dB per-octave, Prophet-6™ low-pass filter
• Filter 2 is a classic, 4-pole, 24 dB per-octave, transistor ladder filter with optional resonance compensation
• Filter 3 is a 2-pole, 12 db per-octave, OB-6™ state-variable filter. It can be continuously varied between low-pass, notch, and high-pass operation, with an optional band-pass mode.

3 LFOS

• Three syncable LFOs with phase offset and slew per LFO
• Five waveshapes: triangle, saw, reverse saw, square, and S&H

4 ENVELOPES

• Four ADSR envelopes with delay (Filter, VCA, and two Auxiliary envelopes)
• Envelopes freely assignable to multiple modulation destinations
• All envelopes can repeat/loop

DIGITAL EFFECTS

• Dual digital effects
• Stereo delay, BBD delay, chorus, flanger, phaser, ring mod, vintage rotating speaker, distortion, high-pass filter, super plate reverb

FEEDBACK AND DISTORTION

• Tuned feedback with Grunge for extra-aggressive tonal destruction
• Programmable analog distortion

32-SLOT MODULATION MATRIX

• 32 slot modulation matrix with over 46 mod sources and over 171 mod destinations
• Modulation assignment buttons enable quick and easy modulation routing
• Mod Matrix runs at audio rates

4 CONTROL VOLTAGE INS & OUTS AND GATE OUT

• Four control voltage (CV) inputs and outputs for interfacing with modular synths and other CV-compatible devices
• Parameters that can be sent to CV outputs include oscillators, LFOs, envelopes, sequencer tracks and any other source within the modulation matrix. Runs at audio rates.
• Gate Out for triggering external CV-compatible devices. Any CV in can be used as a gate input.

16-TRACK SEQUENCER

• Advanced sequencer with three modes: normal, gated, and trigger
• 16 tracks and 4 linkable 16-step phrases
• Per-step ratcheting, duration, and velocity
• Multiple playback modes: forward, reverse, forward/reverse, random
• Supports real-time/step input, rests, and variable-length sequences
• Syncs to MIDI clock and external audio and CV input
• Sequences freely assignable to any modulation destination

ARPEGGIATOR

• Sophisticated arpeggiator with up, down, up+down, random, assign modes
• Syncs to MIDI clock and external audio and CV inputs
• Re-latching arpeggiation
• Runs concurrent with Sequencer for arpeggiated patterns with parameter automation

CONTROLS

• Over 60 knobs and 70 buttons enable deep, comprehensive editing with minimal menu diving
• Backlit pitch and mod wheels are easily visible in low-light situations and have a smooth, precise response.
• Independently adjustable upper and lower pitch wheel range
• Position-sensitive latchable touch slider for enhanced interactivity and control
• Full-sized, three-octave, semi-weighted keyboard with velocity and aftertouch

MEMORY

• 512 user and 512 factory programs
• Playlist mode for generating easily accessible set lists of your favorite programs
